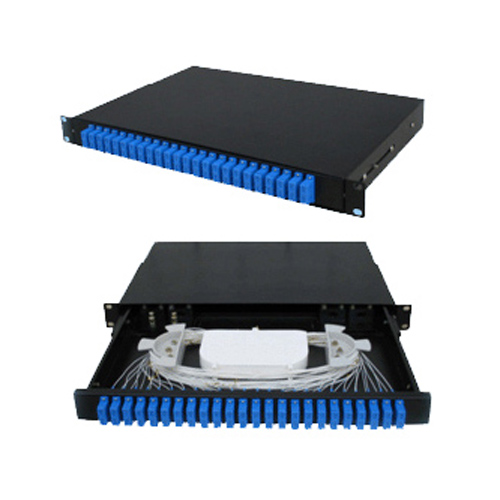

Patch panel

Patch panel





·    19″standard mounting design with static electric plastic sprayed, nice appearance;

·    Can be used for ribbon & bunch fiber cables;

·   FC/SC/ST types of adapters could be plugged in;

·   Clear fiber route, pigtails could be coiled and stored on the tray;

·   It is flexible for installation and convenient for operation and maintenance.

  • Working temperature: -5°C - +40°C
  • Environmental temperature: -25°C - +55°C
  • Relative humidity: ≤85%((when the temperature is below 30°C))
  • Atmosphere pressure: 70 Kpa～106Kpa
  • Insertion loss: ≤0.3dB
  • Return loss: PC≥40 dB UPC≥50dB APC≥60dB
  • Insulating resistance between the box and the earthing device:1000MΩ/500VDC
  • Voltage-resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
