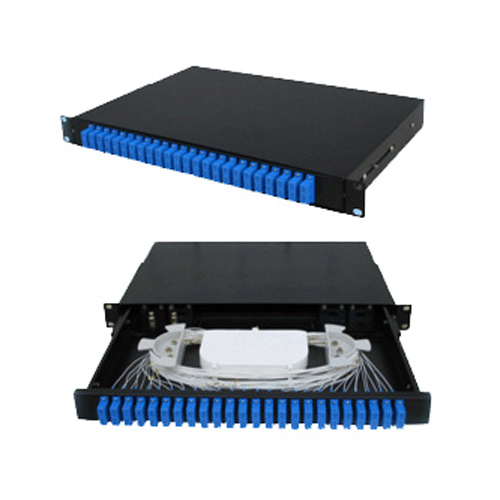

پچ پنل

مشخصات و پارامتر پچ پنل های 24 و 48 پورت به شرح زیر میباشد :

• 19″standard mounting design with static electric plastic sprayed, nice appearance;
• Can be used for ribbon & bunch fiber cables;
• FC/SC/ST types of adapters could be plugged in;
• Clear fiber route, pigtails could be coiled and stored on the tray;
• It is flexible for installation and convenient for operation and maintenance.

• Working temperature: -5°C - +40°C
• Environmental temperature: -25°C - +55°C
• Relative humidity: ≤85%((when the temperature is below 30°C))
• Atmosphere pressure: 70 Kpa～106Kpa
• Insertion loss: ≤0.3dB
• Return loss: PC≥40 dB UPC≥50dB APC≥60dB
• Insulating resistance between the box and the earthing device:1000MΩ/500VDC
• Voltage-resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
